TG5000E Tub Grinder

As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.

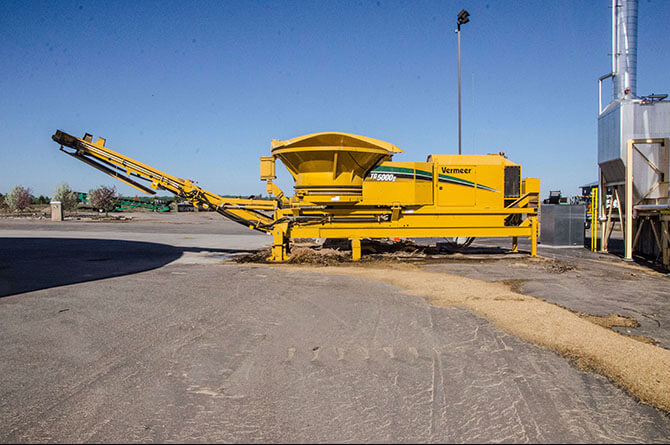

As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need. The TG5000E tub grinder is equipped with a 500-hp (373-kW) motor to provide power to the mill. With the option to configure either a soft-start or VFD starter panel – along with Vermeer features like the duplex drum design and continuous undermill discharge conveyor system – the TG5000E has the flexibility and features you need for productive processing.

REQUEST OFFER

PRODUCT VIDEO

FEATURES & BENEFITS

ENCLOSED FAN-COOLED ELECTRIC MOTOR

The TG5000E is equipped with a 500-hp (373-kW) Weg totally enclosed fan-cooled electric motor to power the mill. A separate 60-hp (44.7-kW) electric motor powers the pump for the hydraulic circuits, while a 2-hp (1.5-kW) electric motor powers the fan to cool the hydraulic system.

MOTOR STARTER PANEL

The motor starter panel provides options to configure a control system that best fits your application – whether that’s a soft-start or VFD panel.

REVERSIBLE HAMMERS AND TIPS

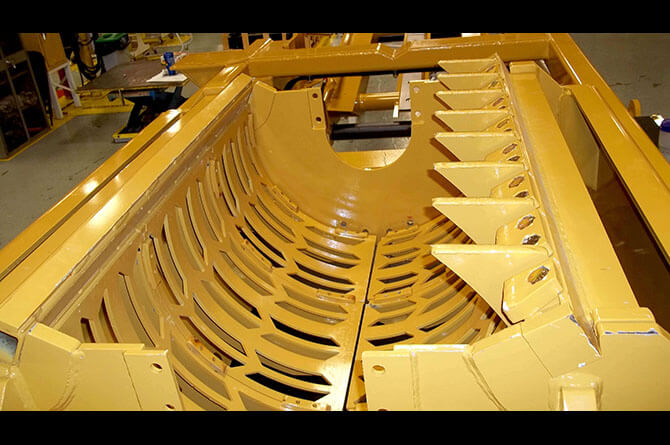

The duplex drum offers proven cutting performance, and reversible hammers and tips nearly double the wear life of single-sided designs and simplify daily maintenance.

THROWN OBJECT RESTRAINT SYSTEM (TORS)

The patented TORS reduces the amount and distance of thrown objects, and has a smooth underside for better material flow.

ON-RIG DISPLAY OR REMOTE CONTROL

Monitor real-time performance and data via the on-rig display or remote control.

CONTINUOUS UNDERMILL DISCHARGE CONVEYOR SYSTEM

Designed to handle more production with less clogging, the 36-in (91.4-cm) wide continuous undermill discharge conveyor system offers optimum speed and capacity.
